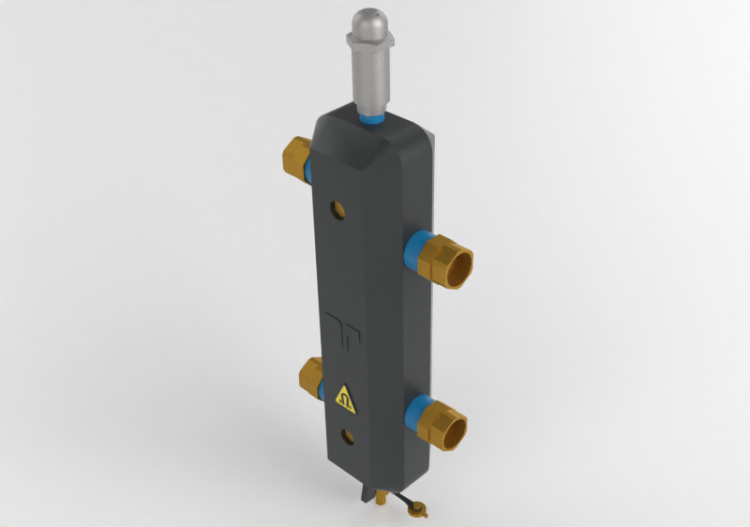

Magnetic hydraulic separator DN32 (1"1/4) - 3144ISOL - 314 0006
Magnetic hydraulic separator DN32 (1"1/4) - 3144ISOL - 314 0006 (Technical Installations | Free Download)
Insulated magnetic threaded hydraulic separator, complete with automatic air vent valve and drain cock with hose connection. Made of: separator body in Fe360 steel painted with epoxy powders, drain valve body in CW617N brass, air vent valve body in brass CW617N nickel-plated, air vent float in PP, fittings in 3 connection pieces in CW617N brass, hydraulic seals in NBR and EPDM, insulation in PE-X. Threaded connections ISO 228 (flat seal unions), front connection G 1/2” F ISO 228 for any probe holder. Maximum working temperature: +100°C. Minimum operating temperature: 0 °C (provided the fluid remains in the liquid phase). Maximum operating pressure: 10 bar Maximum air vent operating pressure: 4 bar. Magnet Power: 12,000 Gauss. Fluid compatibility: Water and glycol solutions (maximum glycol percentage 30%). Available sizes: 1”1/4 (flow rate 4 m³/h)
