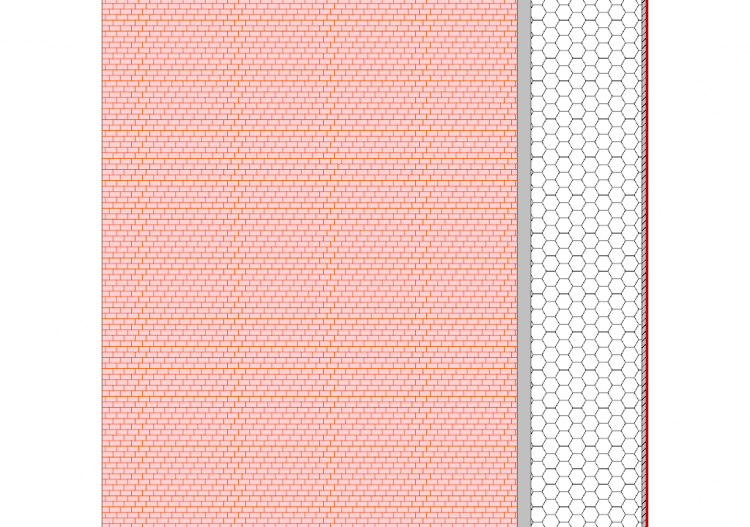

White EPS T150 thk. 8 cm - VieroClima P [394.50]

White EPS T150 thk. 8 cm - VieroClima P [394.50] - ACCA...

White EPS T150 thk. 8 cm - VieroClima P [394.50] (Material Layers | Free Download)

Thermal Coating insulation system applied on vertical and sub-horizontal external surfaces, certified according to the ETAG 004 standard with all its components, and consisting of: "VieroClima 035 T150 ECO" 50x100 cm sheets in expanded polystyrene sintered T150 white; “Adesan CPS B” adhesive/smoothing paste with calibrated granulometry added with Portland cement 32.5 in a 1:1 ratio; “Vierosil ASX 1.5” fiber-reinforced thickness finish with a minimum grain size of 1.5 mm, of anti-mold and anti-algae acryl-siloxane matrix, with good vapor permeability and high water repellency, characterized by a light reflection index greater than 20; The system is to be considered complete with accessories such as aluminum starting profiles, corner profiles with integrated fiberglass mesh, approved anchoring system, fiberglass reinforcement mesh with "Rete 0160 A" anti-alkaline primer, with 3.5x3.8 mm mesh, and 165 g/m² density, run-proof, sewn at the four corners and “Prymer PGM” pigmented acrystyrene anchoring wall primer in aqueous dispersion.

viero BIMCtlg Cromology Italia
